SEEPEX BTCS HOPPER PUMP IN HYGIENIC DESIGN

SEEPEX BTCS HOPPER PUMP IN HYGIENIC DESIGN

FOOD AND HYGIENIC PUMP WITH HOPPER

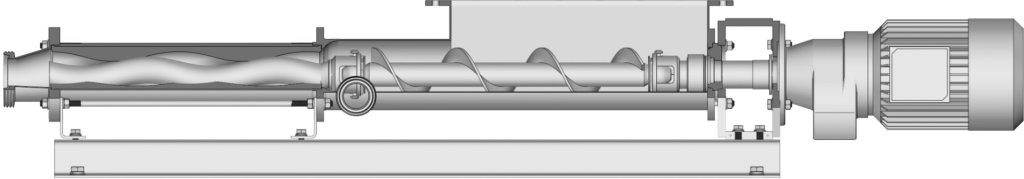

The design of the BTCS food pump and hygienic pump from SEEPEX is characterized by a rectangular hopper with a compression zone and feed screw conveyor. This makes it particularly suited for pumping highly viscous, minimally flowable products – both with and without solids. In the hygienic design, the pump is fitted with open joints. However, it is optionally available with closed pin joints.

Specialized Pump for Viscous and Shear-Sensitive Materials in Hygienic Environments

The SEEPEX BTCS Hopper Pump in Hygienic Design is a specialized pump designed for applications in the food, pharmaceutical, and biotech industries. It features a hopper-shaped housing that allows for easy and efficient handling of viscous or shear-sensitive materials. The pump also meets rigorous hygienic standards, making it suitable for use in sanitary environments where cleanliness and contamination prevention are critical.

Applications for the SEEPEX BTCS hopper pump in hygienic design include

  • Transfer of fruit and vegetable purees
  • Metering of yeast and dough in the baking industry
  • Processing of meat emulsions for sausage production
  • Transfer of creams, lotions, and other personal care products
  • Transfer of liquid chocolate and other confectionery products.

Variable

Available with a choice of open hygienic joints or closed pin joints, suitable to your individual application

Fulfills strict hygienic standards

Certified under the 3-A Sanitary Standards (variant with open joints) and designed in compliance with the EHEDG guidelines, and fitted with FDA-approved and EU 1935-2004 compliant components

Residue-free cleaning

Special housing geometry and open, hygienic pin joints facilitate optimal cleaning and sterilization: CIP, SIP, COP

Wear resistant

Hermetically sealed elastomer sleeves are particularly suited for abrasive pumping media

Optimal conveyance

Optimal filling of conveying chambers through feed screw and conically closing compression zone

Low pulsation

Minimal pulsation and low shear characteristics allow the gentle conveyance of sensitive media
